Precision Series: Metal Tile Systems

M-42 & M-36 panels, 7.2 panels, 1/2 " & 7/8" corrugated, R-36

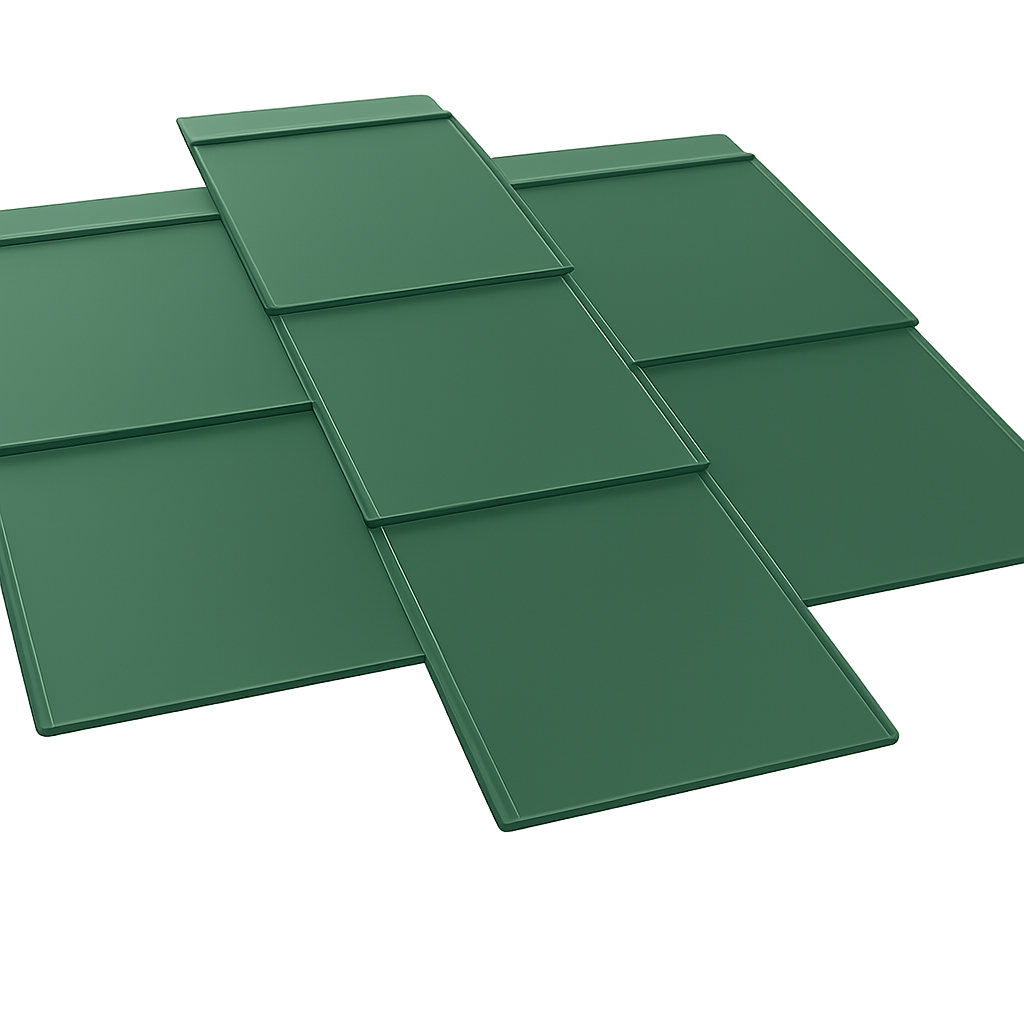

Flat tile

Features & Benefits

  • Nominal: 15” x 9-5/8”

  • Exposed: 14-1/2” x 8-5/16” +/- 1/16”

Petersen’s Precision Series Tiles feature three stamped metal profiles—Cupped, Flat, and Diamond—designed for versatile use in both roof and wall cladding applications. The Flat tile offers a clean aesthetic that complements both modern and traditional architectural styles. Engineered for performance and ease of installation, these interlocking tiles use concealed fasteners, require no sealant, and are designed to reduce thermal movement. All profiles are backed by a 35-year PAC-CLAD finish warranty, ensuring lasting durability and visual appeal.

The Precision Series Tiles collection from Petersen offers three distinct metal tile profiles—Cupped, Flat, and Diamond—designed for flexible use in both commercial and residential roof and wall cladding applications. These interlocking tiles feature a concealed-fastener system that allows for easy, sealant-free installation while accommodating thermal movement. Engineered for durability and cost efficiency, Precision Series Tiles elevate architectural aesthetics and are backed by a 35-year PAC-CLAD finish warranty for long-lasting performance.

Cupped Tile

Features & Benefits

  • Nominal: 15” x 9-5/8”

  • Exposed: 14-1/2” x 8-5/16” +/- 1/16”

Petersen’s Precision Series Tiles offer a unique alternative to traditional roll-formed panel-style cladding, providing architects, specifiers, and installers with a visually dynamic and cost-effective solution for both roof and wall applications. Available in three stamped metal profiles—Cupped, Flat, and Diamond—these tiles are designed to add dimension and depth to any exterior, enhancing architectural appeal across commercial and residential projects.

Engineered for performance and ease of installation, the interlocking tiles are formed with precision progressive tooling to ensure uniformity. They attach directly to plywood or elevated channels using concealed fasteners, creating clean lines without the need for sealant. The breathable joints allow for airflow while minimizing thermal gain and movement, thanks to the small tile size. Installation is simple and requires only basic sheet metal tools.

Precision Series Tiles support roof applications with a minimum slope of 3:12, and all styles are backed by the trusted PAC-CLAD 35-year finish warranty, ensuring long-lasting durability and visual impact.

The interlocking tiles are formed using progressive tooling to create a uniform and cost-effective cladding solution. This system installs directly over plywood or elevated channels using concealed fasteners. No sealant is required for the tiles’ breathable joints. Thermal gain and movement is not an issue, as the small size of each tile means movement will be minimal. Only basic sheet metal tools are required to work with these products. Minimum slope of 3:12 for roof applications.

diamond tile

Features & Benefits

  • Nominal: 8-5/16″ x 9-3/4″

  • Exposed: 7-1/4” x 8-5/16” +/-1/16”

The Precision Series Tiles collection from Petersen includes three metal tile profiles that offer designers, specifiers and installers an alternative to roll-formed panel-style cladding. The stamped tiles can be applied to roof or wall installations, and are offered in three styles including Cupped, Flat and Diamond. Designed to enhance architectural design, the tiles add dimension to the exterior of any structure. The tiles can be applied to either commercial or residential environments, and are covered by the PAC-CLAD 35-year finish warranty.
