Metal Column Covers

PAC-1000C Column Cover, PAC-1000F Column Cover, PAC-1000R Column Cover, PAC-2000C Column Cover, PAC-2000F Column Cover, PAC-2000R Column Cover

Modern building with large glass windows, brick walls, and metal columns in front of a grassy lawn under a clear blue sky.

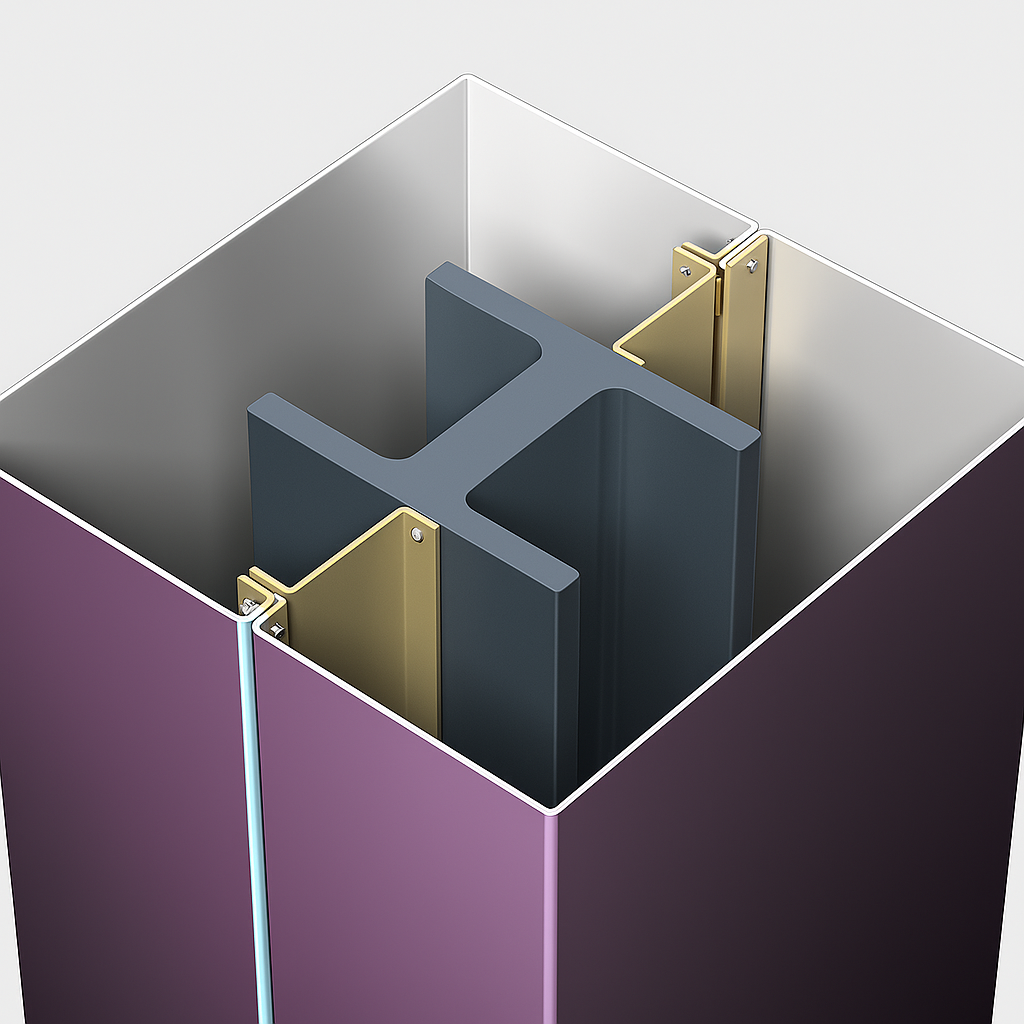

Cross-section of an industrial metal column covers from PAC-CLAD

PAC-1000F Column Cover

Materials

  • 16 gauge stainless steel

  • .090 aluminum

  • .125 aluminum

Line drawing of a flush joint assembly showing a shim, fastener assembly, and screw, labeled as 1000 flush joint.

PAC-CLAD’s column covers bring both form and function to structural beam applications—indoors or out. Available in round or square profiles, these systems can be fabricated from aluminum, stainless steel, copper, and other architectural metals to suit your design intent.

Choose from three joint styles: Flush Joint for a seamless look, Caulk Joint with a clean vertical reveal, or the PAC Reveal Joint, which includes a metal channel filler for crisp, defined lines. Versatile and customizable, these covers deliver durable protection with architectural-grade aesthetics.

PAC-1000C Column Cover

Materials

  • 16 gauge stainless steel

  • .090 aluminum

  • .125 aluminum

Technical illustration of a window frame cross-section showing a shim, backer rod and caulk, with a 5/8 inch measurement specified.

PAC-CLAD column covers offer flexible, architectural-grade solutions for both interior and exterior structural beams. Fabricated in aluminum, stainless steel, copper, and other premium metals, they’re fully customizable to match your design vision.

The PAC-1000C Caulk Joint system features a clean vertical reveal sealed with caulk and a backer rod—ideal for applications requiring a sharp, finished look. Custom diameters and configurations are available; reach out to Petersen for tailored options.

Interior view of industrial metal column covers from PAC-CLAD

PAC-CLAD column covers give architects the flexibility to meet both performance standards and design intent—indoors or out. Fabricated from high-quality materials like aluminum, stainless steel, and copper, these systems are built to meet demanding project specs.

The PAC-1000F Flush Joint design delivers crisp, hairline seams for a seamless appearance, with custom diameters available to suit your exact needs. For tailored fabrication capabilities, contact the team at Petersen.

Interior view of industrial metal column covers from PAC-CLAD

PAC-1000R Column Cover

Materials

  • 16 gauge stainless steel

  • .090 aluminum

  • .125 aluminum

Technical illustration of a sealing system showing a channel in sealant, a shim, and a screw, with a measurement of 5/8 inch between components.

PAC-CLAD column covers give architects the design flexibility needed for both interior and exterior structural beam applications. Available in aluminum, stainless steel, copper, and a range of standard or custom colors, they’re built to meet aesthetic and performance goals alike.

The PAC-2000C Caulk Joint system features a slim vertical reveal for a subtle, finished look and is available in customizable widths. For detailed sizing and fabrication options, connect with the Petersen team.

PAC-2000C Column Cover

Materials

  • 16 gauge stainless steel

  • .090 aluminum

  • .125 aluminum

A technical drawing of a 2000 caulk joint, showing a vertical and horizontal joint with a shim, backer rod and caulk. The diagram indicates a 5/8 inch measurement for the backer rod and caulk gap.

PAC-CLAD column covers offer architects a flexible solution for dressing up interior and exterior structural beams. Available in aluminum, stainless steel, copper, and other architectural metals, these systems can be finished in both standard and custom colors to match any design palette.

The PAC-2000C Caulk Joint cover features a narrow vertical reveal and customizable widths—striking the right balance between clean lines and practical detailing. For specific fabrication capabilities, reach out to Petersen directly.

A modern, rectangular metallic Interior view of industrial metal column covers from PAC-CLAD
A purple and silver cubic Interior view of industrial metal column covers from PAC-CLAD

PAC-2000F Column Cover

Materials

  • 16 gauge stainless steel

  • .090 aluminum

  • .125 aluminum

A technical drawing showing a fastener assembly connected to a pipe or tube system with a lid or cover at the top, labeled 'Illustration' in the upper-left corner.

PAC-CLAD column covers deliver adaptable design solutions for structural beams, inside or out. Fabricated from durable materials like aluminum, stainless steel, and copper, they’re available in a wide range of colors and finishes to suit any project style.

The PAC-2000F Flush Joint system features crisp vertical seams for a sleek, continuous appearance—designed with precision and ease of installation in mind. Custom widths and fabrication options are available; contact Petersen to explore what’s possible.

PAC-2000R Column Cover

Materials

  • 16 gauge stainless steel

  • .090 aluminum

  • .125 aluminum

Technical illustration of a fastener assembly with labeled components, including a vertical pipe, horizontal tube, and a round adjusting knob.

PAC-CLAD offers flexible column cover solutions for structural beam applications, crafted from aluminum, stainless steel, copper, and more—available in a variety of standard and custom colors to match any design intent.

The PAC-2000R Reveal Joint system features open vertical reveals with sealant-filled joints, delivering a clean, defined look that installs easily. Custom widths and fabrication options are available; reach out to Petersen for full capabilities and support.

An open box containing Interior view of industrial metal column covers from PAC-CLAD
