Composite Wall Panels
PAC-4000 RV Field-Assembled System, PAC-4000 DRV Field-Assembled System, PAC-3000 CS, PAC-3000 RS

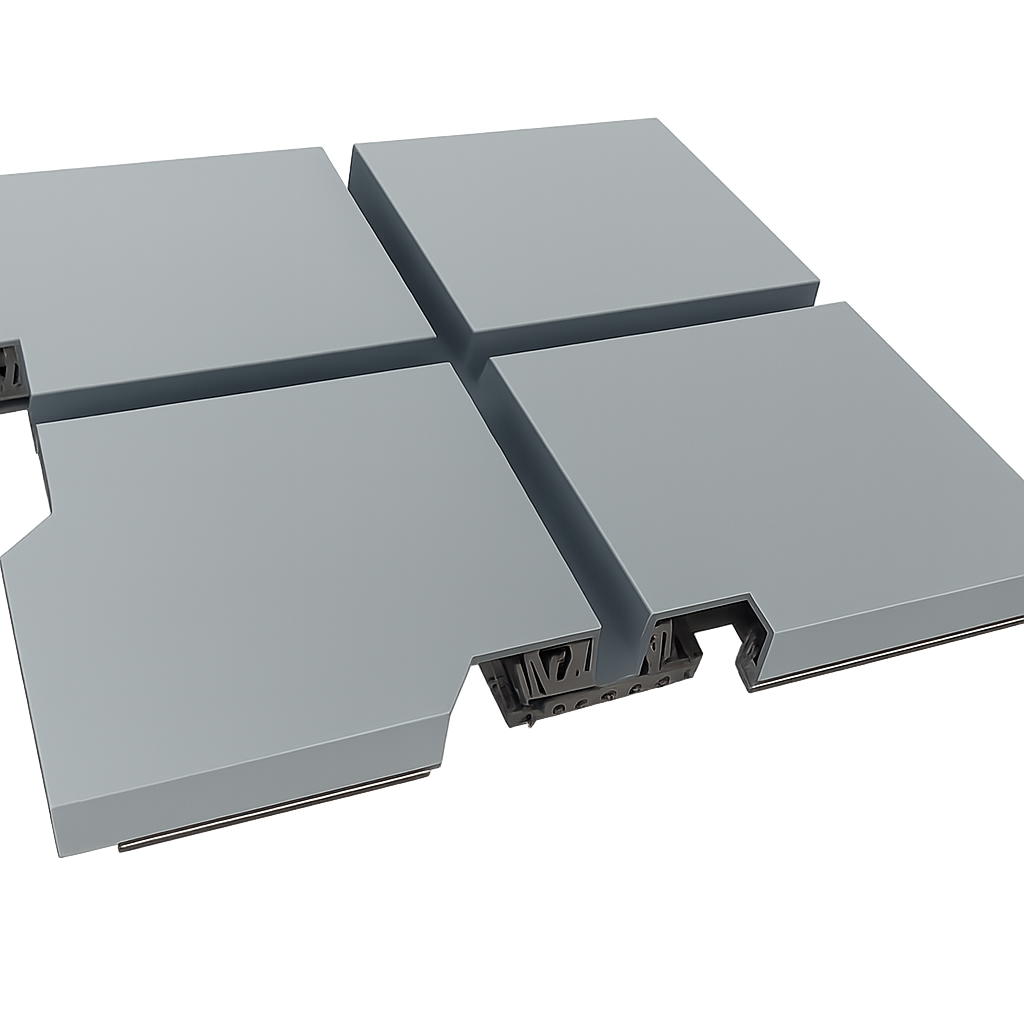

PAC-4000 DRV Field-Assembled System
Features & Benefits
Performance Testing for Panel and System (including NFPA 285)
Fire Resistant
Impact Resistant
Water Resistant
Curvable
Cut-To-Size
Thermal Stability
Low Maintenance
Quick Lead Time
10-year panel warranty
20-year anodized finish warranty
30-year Kynar 500 finish (coil-coated) warranty
Width: 48″ or 60″
Length: 96”, 120”, or 144”
PAC-4000 is a 4mm composite panel system engineered by bonding a prefinished aluminum skin to a thermoset phenolic resin core, delivering exceptional strength and durability. A secondary aluminum skin is applied to the back side, ensuring thermal stability and overall panel balance. Designed for exterior cladding applications, PAC-4000 is ideal for walls, canopies, fascia, and architectural accents across all types of commercial buildings.
Petersen’s composite wall panels deliver exceptional design flexibility and performance, making them ideal for commercial, retail, and institutional applications. The PAC-3000 CS system utilizes a precise rout-and-return fabrication method to achieve tight tolerances and crisp panel edges. For a sleek, caulk-free finish, the PAC-3000 RS rain-screen system features clean reveals and a floating installation design. Both systems are available in a wide range of finishes and colors, offering lasting durability and modern architectural appeal.
PAC-4000 RV Field-Assembled System
Features & Benefits
Performance Testing for Panel and System (including NFPA 285)
Fire Resistant
Impact Resistant
Water Resistant
Curvable
Cut-To-Size
Thermal Stability
Low Maintenance
Quick Lead Time
10-year panel warranty
20-year anodized finish warranty
30-year Kynar 500 finish (coil-coated) warranty
Width: 48" or 60"
Length: 96”, 120”, or 144”
The PAC-4000 is a 4mm composite panel system engineered by bonding a prefinished aluminum face to a thermoset phenolic resin core, with a second aluminum skin applied to the back for enhanced thermal stability and structural balance. Designed specifically for exterior cladding, PAC-4000 is ideal for use on walls, canopies, fascia, and architectural accents across a wide range of commercial building types. This high-performance system offers durability, dimensional stability, and a clean, modern aesthetic.
PAC-3000 CS
Features & Benefits
Precise fabrication to meet exacting tolerances
Rout-and-return fabrication
Welded corners available
Petersen’s composite wall panels deliver a balance of design versatility, high performance, and visual sophistication—ideal for commercial and retail environments. PAC-3000 CS panels are constructed with a .020-inch aluminum face and back skin thermo-bonded to a polyethylene or fire-retardant core for enhanced strength and safety. Precision fabrication ensures tight tolerances and clean lines, while staggered angle clips allow for easy, individual panel installation—streamlining both aesthetics and functionality.
PAC-3000 RS
Features & Benefits
Precise fabrication to meet exacting tolerances
Rout-and-return fabrication
Welded corners available
Petersen’s composite wall panels provide exceptional design flexibility and performance for a wide range of commercial applications. The PAC-3000 RS rain-screen system is engineered for a sleek, modern appearance—eliminating the need for caulk by utilizing clean, defined reveals. Constructed from durable metal composite material, the system supports a free-floating installation method that enhances both aesthetics and long-term performance. A variety of finishes and colors are available to suit diverse architectural styles and project requirements.
