Envelope 2000®

Close-up of a wall corner with a black sealant line and a cross-sectional view of a wall with wall insulation or drywall and a foam or rubber gasket, marked with a 'Code Tested and Approved' stamp.

Rout & Return (RR)

All the benefits of a tested ACM / MCM in a system that can be fabricated on-site, paired with a quick lead time makes these products the optimization of value. Offering the ultimate in high-end aesthetics and performance, these systems provide both wet and dry sealed options to meet the most demanding requirements.

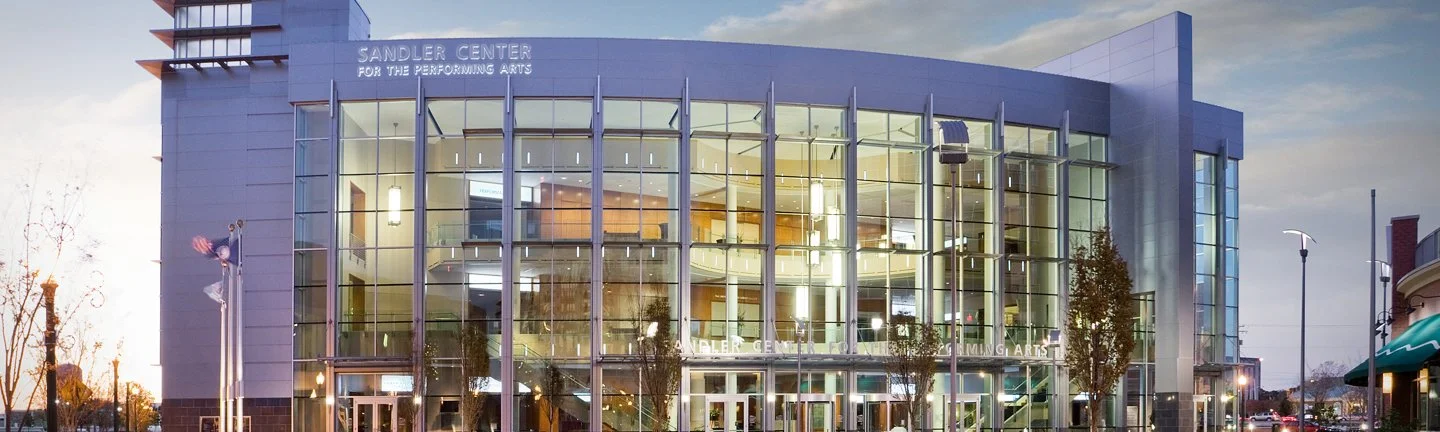

Exterior view of the Sandler Center for the Performing Arts, a modern glass building with multiple floors and trees in front, at dusk.

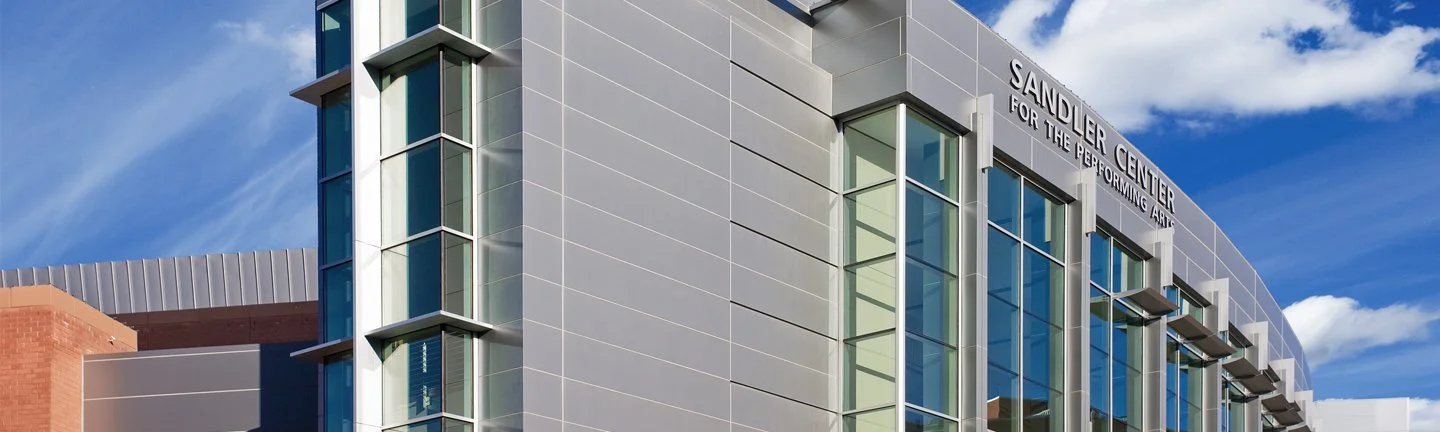

Exterior of the Sander Center for the Performing Arts building with large glass windows and modern grey facade, under a partly cloudy blue sky.

Features & Benefits

  • 4mm Phenolic Resin Panel

  • 1-1/2″ System Depth

  • Barrier Wall

  • Wet-Sealed Joint

  • Progressive Sequence

FINISHES

Available in a variety of colors and finishes:

  • Smooth Kynar 500

  • Smooth Anodized

Close-up of a digital memory card reading 4mm with a glowing blue indicator light beneath it.

Panel Thickness

A durable, .105″ thermoset
phenolic resin core provides an
ultra-smooth substrate.

fire, impact, & Water resistant

The phenolic core meets (or exceeds) fire-resistant code requirements and offers extra protection from dents and dings or incidental moisture.

Close-up of a circular symbol showing fractions 1-1 and 2-" inside the circle, embossed with a grey background.

System Depth

The system measures 1-1/2″
from the face of the substrate
to the face of the moldings.

Outline of a flame inside a drop of liquid symbol, with a blurred dark background.
Close-up of a small circular metallic object with the inscription '1.25 in' engraved on it, set against a blurred gray background.

Panel Weight

This panel has a nominal weight of approximately 1.25 lbs per square foot.

Gray checkmark inside a circle

code tested

Designed for performance,
tested by ASTM 283, 330 and 331 as well as ICC and NFPA 285.

Outline of a water droplet above three wavy lines representing water on a gray gradient background.

barrier Wall

This system is designed to be completely sealed to keep all
moisture away from the structure.

resources & Information

Complete

design guide

A modern building with white cladding and large glass windows against a blue sky, with the Citadel logo and the text 'Cladding Concepts' on the cover of a case studies and design guide.

Explore

Color chart

A digital illustration of a glue gun with glue sticks and a drop of glue, depicted in blue neon outline.

FAQ
