Envelope 2000®

Close-up of a modern, white aluminum window frame with double-pane glass.

Deep-Reveal (DRV)

All the benefits of a tested ACM / MCM in a system that can be fabricated on-site, paired with a quick lead time makes these products the optimization of value. Offering the ultimate in high-end aesthetics and performance, these systems provide both wet and dry sealed options to meet the most demanding requirements.

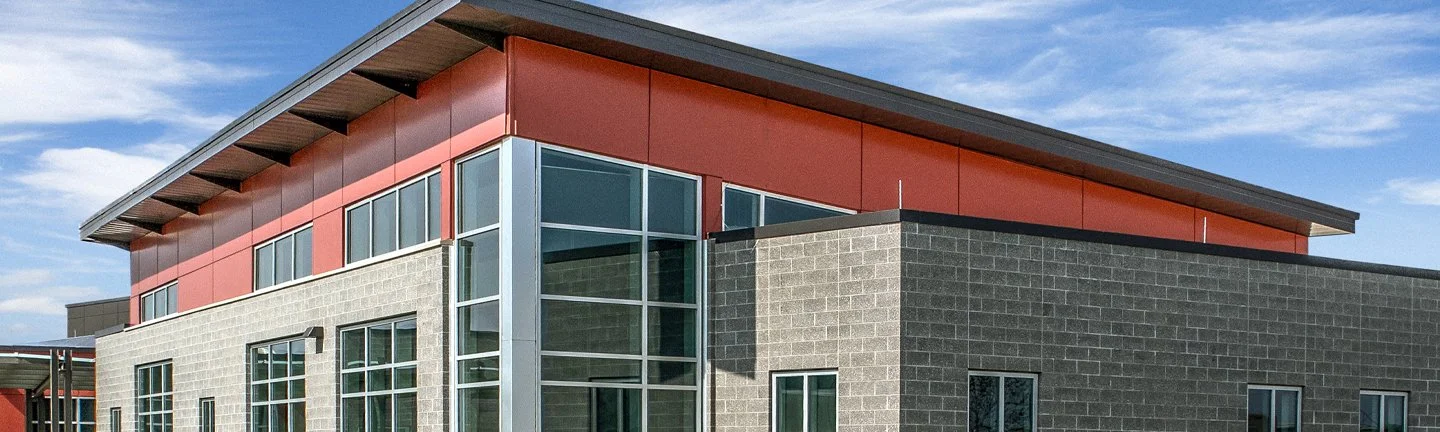

Modern building with gray brick walls, large glass windows, and a red upper section, under a partly cloudy sky.

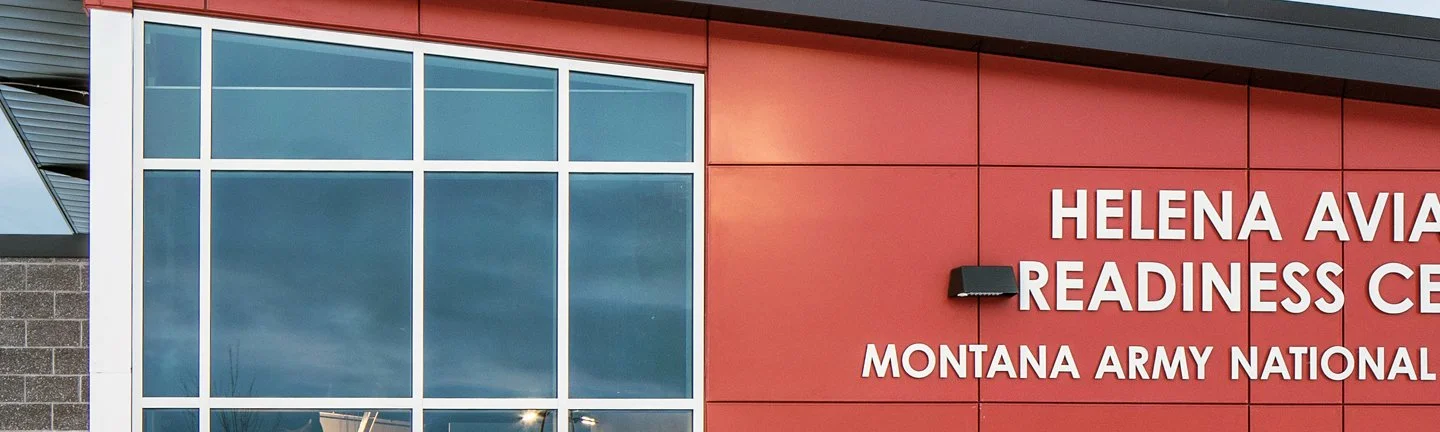

Exterior of Helena Aviation Readiness Center at Montana Army National Guard building with large windows and red facade.

Features & Benefits

  • 4mm Phenolic Resin Panel

  • 1-5/16″ System Depth

  • Cavity Wall

FINISHES

Available in a variety of colors and finishes:

  • Smooth Kynar 500

  • Smooth Anodized

Graphic showing a memory card with a highlighted 4mm label.

Panel Thickness

A durable, .105″ thermoset
phenolic resin core provides an
ultra-smooth substrate.

fire, impact, & Water resistant

The phenolic core meets (or exceeds) fire-resistant code requirements and offers extra protection from dents and dings or incidental moisture

Close-up of a circuit-like design showing the fraction 1/5 divided by 16.

System Depth

The system measures 1-5/16″
from the face of the substrate
to the face of the moldings.

Gray checkmark inside a circle indicating approval or completion.
Faintly visible 1.25 inch circular measurer with a dot in the middle.

Panel Weight

This panel has a nominal weight of approximately 1.25 lbs per square foot.

Outline of a water droplet above two wavy lines, on a gray background.

barrier Wall

Designed for performance,
tested by ASTM 283, 330 and 331
as well as ICC and NFPA 285.
